M5xi - Specifications

Output

• Continuous Power, both channels driven @ 1% THD, 1kHz:
• 160W per channel into 8 Ohms;
• 240W per channel into 4 ohms
• Continuous Power, both channels driven @ 0.09% THD, 20Hz to 20 kHz:
• 140W per channel into 8 Ohms;
• 210W per channel into 4 ohms
• Peak Power, both channels driven @ 1% THD, 1kHz:
• 190W per channel into 8 Ohms;
• 320W per channel into 4 ohms
• 36 Volts RMS, 20Hz to 20 kHz; onset of clipping
• 101 Volts peak to peak
• Current 45 Amps peak to peak
• Damping factor 47 (8 Ohms)
• Output devices 2 pairs per channel

Line input

• THD+N < 0.009 % typical, 20Hz to 20 kHz
• Signal / noise ratio > 105dB ‘A’-weighted
• Input impedance 40 k Ohms
• Frequency response +0, –0.1dB, 10Hz to 20 kHz

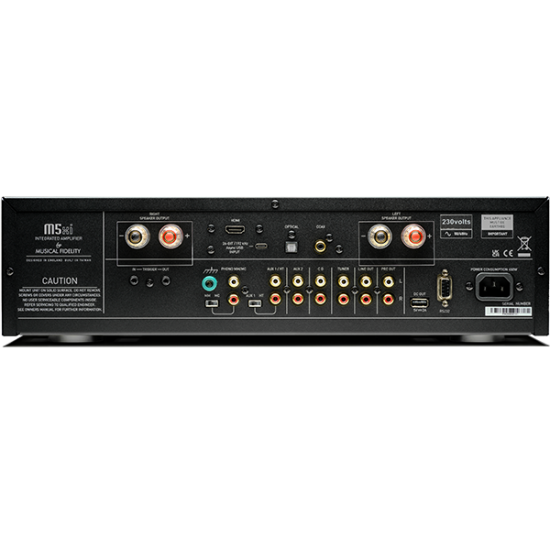

Connections

• 4x Line level RCA inputs
• 1x HDMI input
• 1x Coaxial input
• 1x Optical input
• 1x Phono MM/MC input
• 1x USB type ‘C’ connector - up to 24-bit/192kHz
• Line level outputs 1 pair line level RCA connectors, constant level TAPE outputs
• 1 pair line level RCA connectors, preamp outputs
• Speaker out: 2 pairs 4mm banana plug
• 1x USB A 5V/2A power output
• 1x RS232 D-sub connector
• Trigger In & Out

Phono Input

• Sensitivity (nominal): 3mV MM / 0.4mV MC (for 300mV nominal)
• Gain MM/MC: 40dB / 60dB
• Signal / noise ratio: >87dB ‘A’-weighted
• Input capacitance: 220pF
• Input impedance: 50k Ohms MM / 1k Ohm MC
• Frequency response: RIAA/IEC ±0.4dB, 20Hz - 20 kHz

Power requirement

• Mains 115/230VAC 50/60Hz (factory pre-set)
• 100VAC 50/60Hz (alternative)
• Consumption 320 Watts maximum

General

• Dimensions - WxHxD (mm): 440 x 125 x 405
• Weight (unpacked / packed): 15 kg/ 18.5 kg
