Amplificatore Integrato NuPrime IA-9X

Specifications:

Power Output (RMS): 90W @ 8 Ohms, 145W @ 4 Ohms
Power Output (peak): 100W @ 8 Ohms, 160W @ 4 Ohms

Inputs:

• 1x Phono Stage
• 2x  Analog Stereo RCA
• 1x Analog Stereo XLR
• 1x Trigger in: DC12V in (3- pin 3.5mm phone jack)

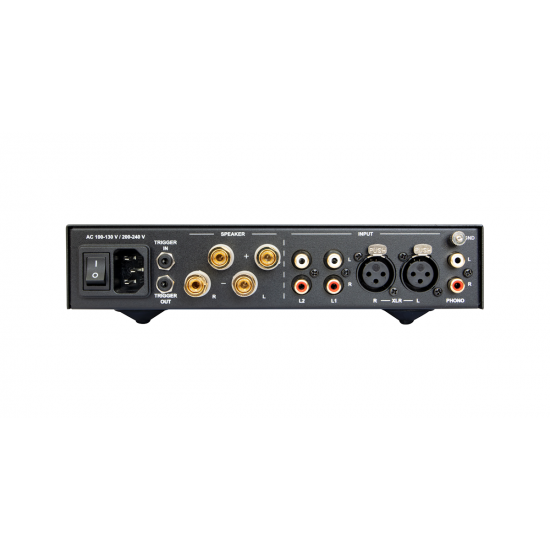

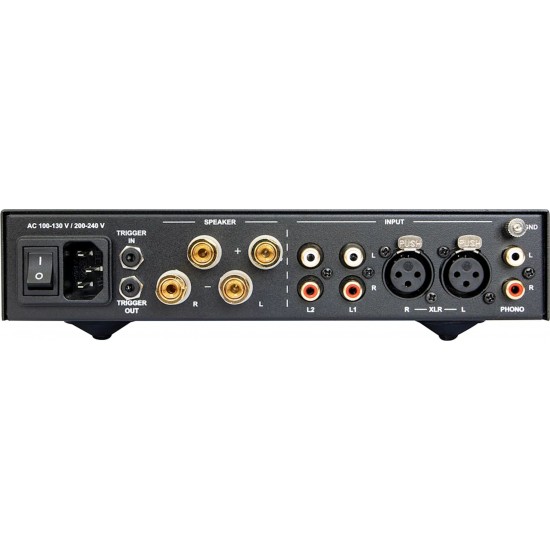

Outputs:

• 2 x Speaker Out
• 1 x Trigger Out: DC12V Out (3-pin 3.5mm phone jack)
• Gain: 24.61 dB
• Sensitivity (to rated power): 1.5Vrms
• Input Impedance: 47K Ohms
• Output Impedance: 20m Ohm
• IA-9X WATT / THD / S/N (typcial) : @5W (0.0014%, 95dB) , @50W (0.003%, 105dB)
• Frequency Response: 10Hz to 50kHz (-3dB)
• Standby Power : 4.6W @ 115V outlet, 3.3W @ 230V outlet
• Idle Power : 13.5W @ 115V outlet, 11.5W @ 230V outlet

Phono Stage :

• Input resistance: 32K ohm / 47K ohm / 100K ohm
• Input capacitance: 100 pF / 220 pF / 320 pF
• MM Input Sensitivity: 4.0 mV @ 1KHz
• GAIN: MM input to L INE output (Vol./Max.) => 65dB @ 1K Hz

Dimensions and Weight:

• Worldwide AC voltage: (115VAC / 230VAC) with Voltage Select Switch
• AC Fuse: Slow blow, 5A, 250VAC
• Color: Black or Silver
• Product Dimension:  60 x 235 x 281 mm (H x W x D)
• Package Dimension: 80 x 390 x 360 mm (H x W x D)
• Product Weight: 3.8kg
• Package Weight: 5kg
